Chih-Deh Factory – Double-Sided Wall Formwork
INFORMATION
Project：Chih-Deh Factory – Double-Sided Wall Formwork
Location：Taiwan, Tainan

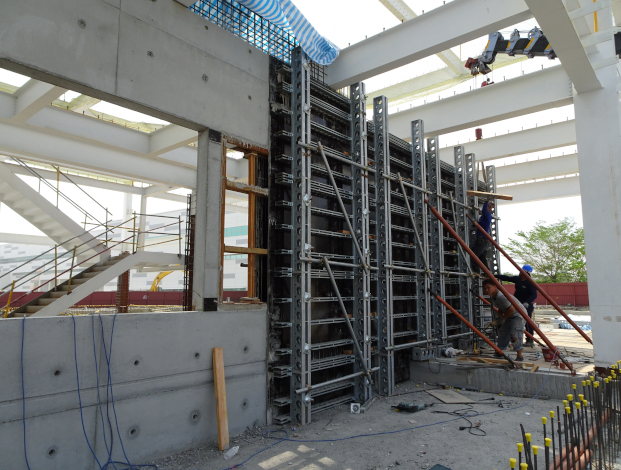

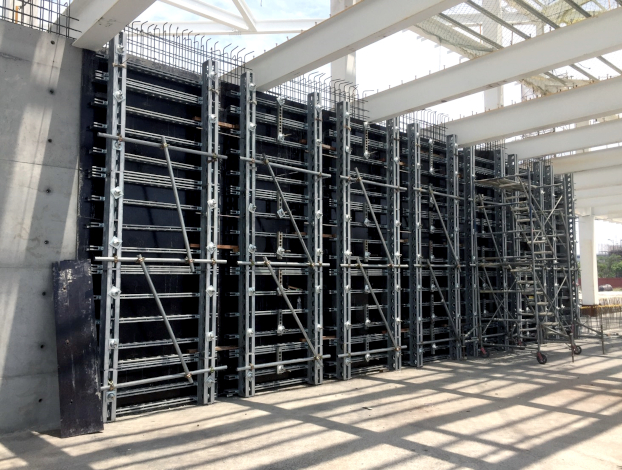

Description：For the Chih-Deh factory construction, Sucoot supplied a double-sided wall formwork system capable of achieving fair-faced concrete finishes — eliminating the need for secondary surface treatment after stripping. The system uses form ties to withstand lateral casting pressure and inclined struts to maintain wall verticality during pouring. Combined with Sucoot’s Ring Lock Scaffolding System, a stable working platform was built to lift and reposition the wall formwork for higher wall construction in subsequent levels, ensuring both precision and efficiency.
Challenges
01
Required a fair-faced concrete finish without additional surface treatment.
02
Needed reliable structural stability for tall wall pours.
Sucoot's Solutions
01

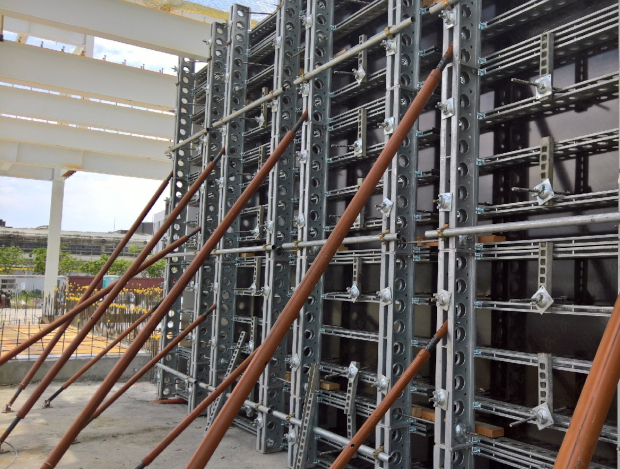

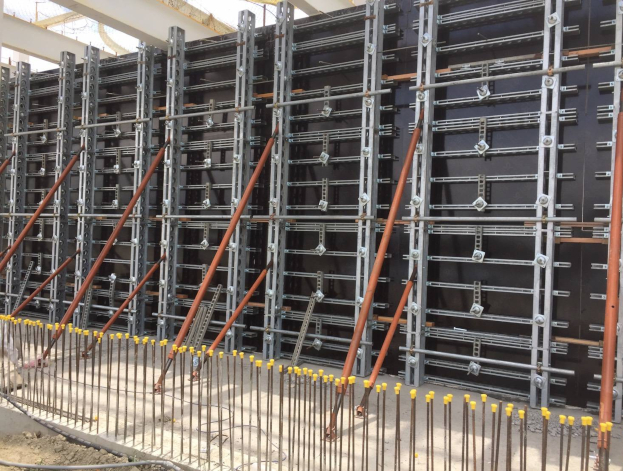

Employed Sucoot’s double-sided wall formwork with tie rods and struts for precise alignment and strength.
02

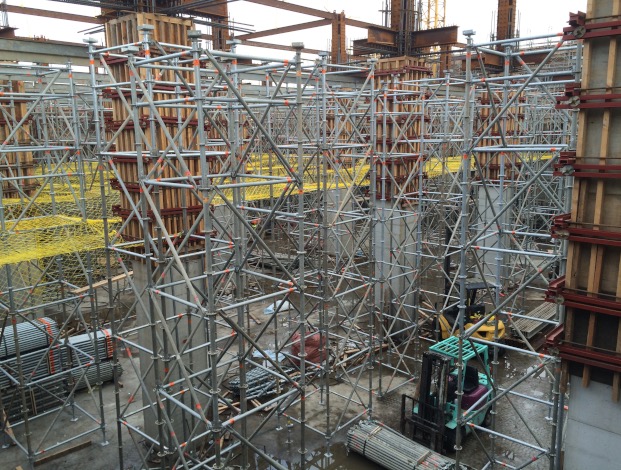

Integrated the Ring Lock Scaffolding System to form adjustable working platforms, enabling higher wall construction safely and efficiently.
Engineering Data
| Year of Construction |
2018 |
| Length (m) |
40M |
| Height (m) |
5.4M |
| Thick (cm) |
X/ 20CM |
| Supporting Range |
Partition |
| Formwork Range |
Factory wall |
| Cycle Time |
Divided into sectional works |
