Ø48.6 T:3.2mm Stage Scaffolding

https://www.sucoot.com/web/image/product.template/8/image_1920?unique=51418b3

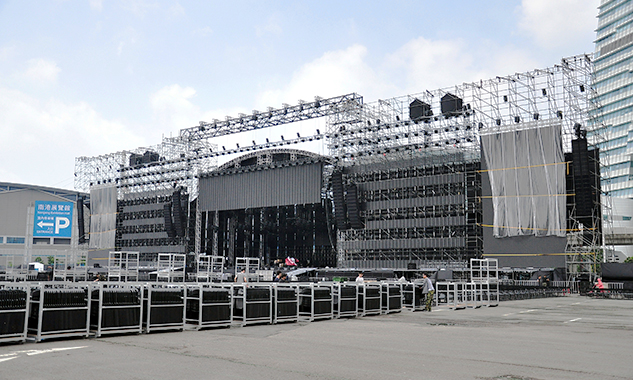

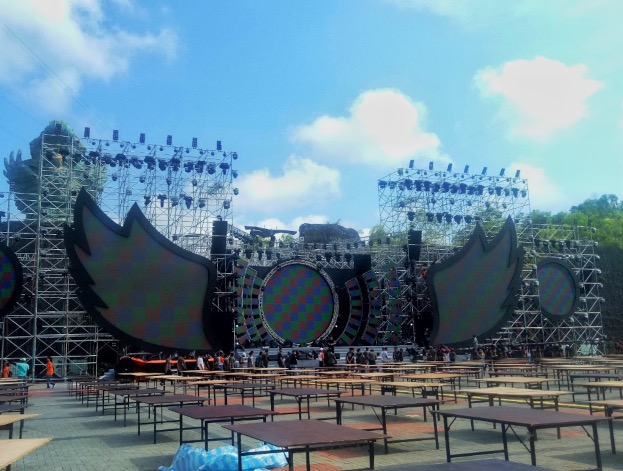

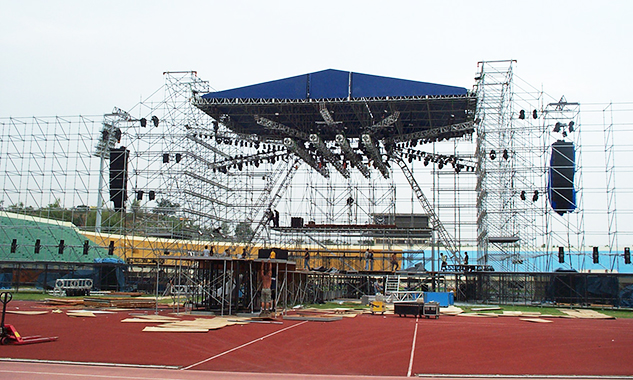

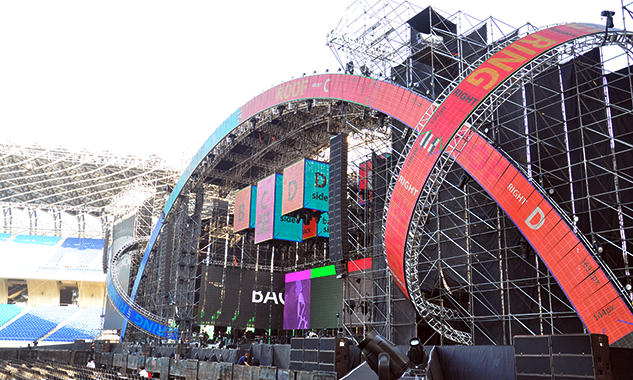

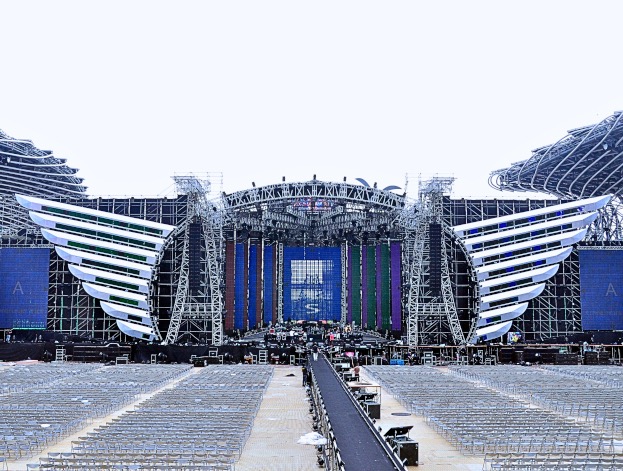

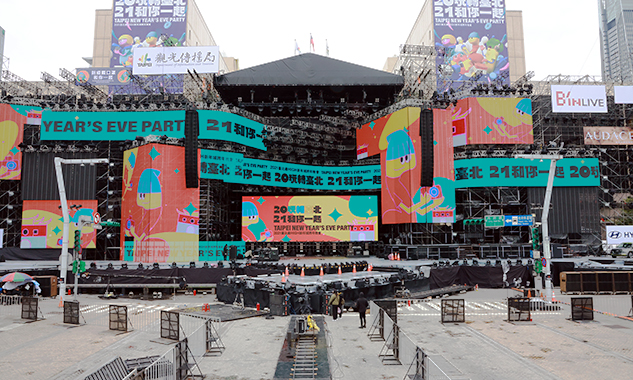

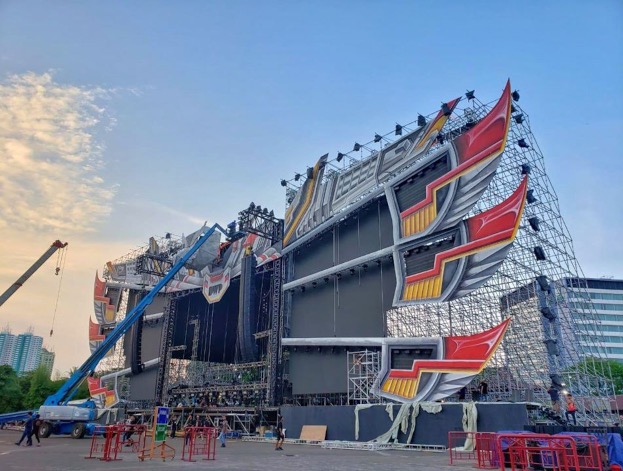

Sucoot Ring Lock Stage Scaffolding — Built to Support Every Unforgettable Performance

From music festivals and sports events to large-scale live productions, Sucoot’s Ring Lock Stage Scaffolding delivers rock-solid support through its modular design, quick assembly, and certified safety. Engineered for high-demand environments, it’s the trusted system where failure is not an option.

With over 40 years of engineering experience and in-house design capabilities, Sucoot is more than a supplier — we’re your technical partner behind the scenes. From ground-assembled lifting to overhead integration, we bring speed, safety, and visible quality to every performance.

Catalog

Contact us

    This combination does not exist.


    1. Quick and Efficient Assembly
      Sucoot’s Stage Scaffolding is designed for speed and ease. With intuitive wedge-head connections and minimal tooling, crews can complete setup quickly and reliably.
      For added efficiency and safety, entire scaffold towers can be preassembled at ground level and lifted into position — reducing work at height and accelerating build times.

    2. Seamless Compatibility with Event Equipment
      Integrates smoothly with trusses, PA towers, roof systems, LED walls, and lighting rigs — forming a reliable structural backbone for multimedia-heavy stage environments.

    3. Certified to International Standards
      Certified to EN 12810-1 and ANSI/ASSE A10.8 safety and performance standards.
    • 1. Quick and Efficient Assembly
      Sucoot’s Stage Scaffolding is designed for speed and ease. With intuitive wedge-head connections and minimal tooling, crews can complete setup quickly and reliably.
      For added efficiency and safety, entire scaffold towers can be preassembled at ground level and lifted into position — reducing work at height and accelerating build times.

    • 2. Seamless Compatibility with Event Equipment
      Integrates smoothly with trusses, PA towers, roof systems, LED walls, and lighting rigs — forming a reliable structural backbone for multimedia-heavy stage environments.

    • 3. Certified to International Standards
      Certified to EN 12810-1 and ANSI/ASSE A10.8 safety and performance standards.
    Vertical

    Main support of the entire system connected by Spigot.

    • Material: STK500
    • W/ Hot Dip Galv.
    • Length: 1.0m；1.5m；2.0m ; 3.0m
    • Pipe: Ø48.6 T:3.2mm
    • Distance between Rings：500mm
    Horizontal

    To distribute force evenly between Verticals.

    • Material: STK500
    • W/ Hot Dip Galv.
    • Length: 0.9m；1.2m；1.5m；1.8m；2.4m
      Other sizes are also available
    • Pipe: Ø48.6 T:3.2mm
    Diagonal

    To enhance the load-carrying capacity and keep the entire system from deformation.

    • Material: STK500
    • W/ Hot Dip Galv.
    • Length:
      1.2m×1.5m；1.5m×1.5m；1.8m×1.5m
      Other sizes are also available
    • Pipe: Ø48.6 T:3.2mm

    This British Standard is the official English language version of EN 12810-1:2003. It supersedes BS 1139-5:1990 which is withdrawn. Therefore, EN 12810-1: 2003 has replaced the BS 1139-5. If you are still looking for BS certified products, our EN certificate also meets your requirement.

    Certificate
    • ISO-9001
    • EN 12810-1
    • ANSI/ASSE A10.8
    Test Report
    • Material Certification
    • Magnetic Particle Test
    • Loading and Tension Test
    • Third Party Professional Lab

    1. Fast Assembly, Less Labor Required

    Sucoot’s modular Ring Lock design uses intuitive wedge-head connections that require only a few hammer strikes to lock in place. Entire towers can be preassembled on the ground and lifted into position using forklifts or cranes — minimizing work at height and saving valuable installation time.

    2. High Load Capacity, Long Service Life

    Made with Ø48.6mm x T3.2mm high-tensile STK500 steel and hot-dip galvanized for corrosion resistance, Sucoot scaffolding offers exceptional strength and durability. When used properly, each structure maintains stable load-bearing performance for over 20 years — a smart long-term investment.

    3. Engineered for Real Stage Applications

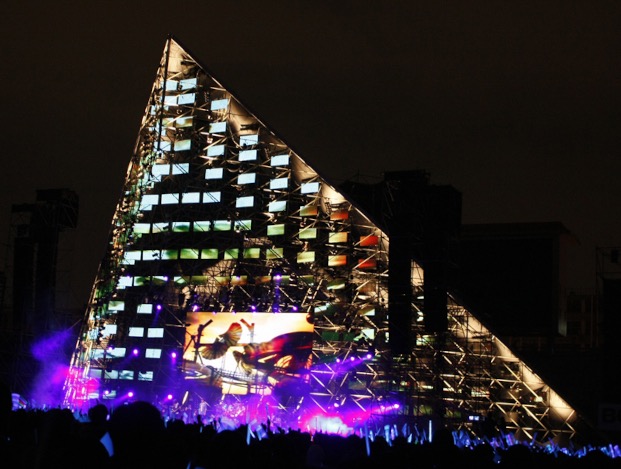

    Sucoot scaffolding supports flat stages, tiered seating, vertical LED walls, and suspended lighting or sound systems with ease. We’re more than a materials supplier — our professional design team provides custom structural drawings to ensure your stage is safe, creative, and performance-ready.

    Why Choose SUCOOT® Light Duty Scaffolding?

    Now that we've explored the versatility of working platform/access tower, let's highlight the advantages of opting for light-duty scaffolding in your projects.

    1. Cost-Effective Solution
    With the features of easy assembly/disassembly, safety and stability, it can save time and costs at work. Light duty scaffold is a cost-effective alternative to its heavier counterparts. Its affordability makes it an attractive choice for small to medium-sized projects where budget constraints are a consideration.

    2. Easy Maneuverability
    The mobility of r mobile tower scaffolds simplifies the process of accessing different areas of a worksite. This feature not only saves time but also reduces the physical strain on workers.

    3. Quick Setup and Dismantling
    Time is of the essence in the construction industry, and  mobile tower scaffolding delivers in this regard. These scaffolds can be assembled and disassembled quickly, ensuring that work can commence promptly.

    4. Safety First
    Safety should always be a top priority on construction sites.  Light facade scaffold is designed with safety in mind, providing stability and support for workers operating at heights.
