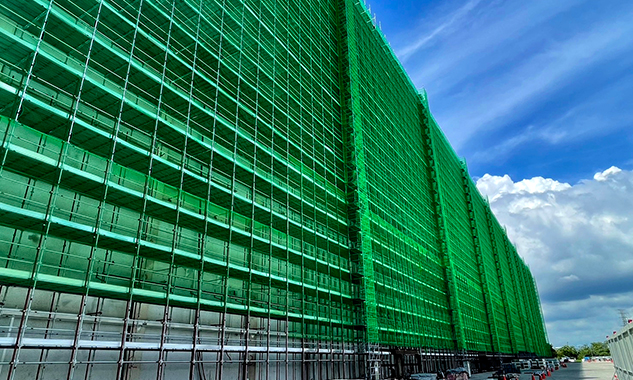

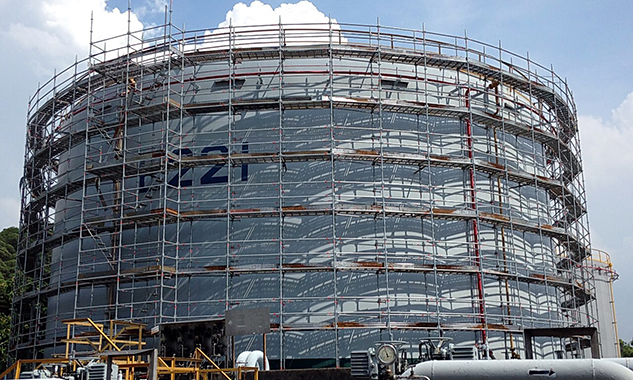

Ø48.6 T:2.5mm Facade (Light Duty) Scaffolding

https://www.sucoot.com/web/image/product.template/2/image_1920?unique=15cc2cb

Light duty scaffolding is the type for working access and building work.

SUCOOT's light duty scaffolding is designed for working access and façade applications. It offers a valuable solution for a variety of construction and maintenance tasks. Its cost-effectiveness, high mobility, quick setup/disassembly, and commitment to safety make it an indispensable asset for any worksite. This could be the key to unlocking efficiency and success in your endeavors. Welcome to contact us immediately, when you want to know more about the light duty scaffold planning solution!

Catalog

Contact us

    This combination does not exist.



      1. Lightweight, Structurally Reliable

      Sucoot’s Light-Duty Ring Lock System is engineered with high-tensile STK500 steel to achieve an optimal balance between weight and strength. Its lightweight components reduce on-site handling fatigue and improve operational efficiency, without compromising structural integrity.

      2. Fast-Locking Ring Node Design

      The system utilizes precision-manufactured ring nodes, allowing for secure and rapid assembly through wedge-head connections. This ensures accurate angular alignment and minimizes installation errors — ideal for time-sensitive or large-scale façade projects.

      3. Flexible Design, Backed by Professional Engineering

      Sucoot’s professional engineering team leverages the flexibility of our modular system to deliver tailored scaffolding solutions for diverse site conditions.

      From layout planning to structural safety, we ensure every setup is optimized for efficiency, adaptability, and stability — even in complex environments.

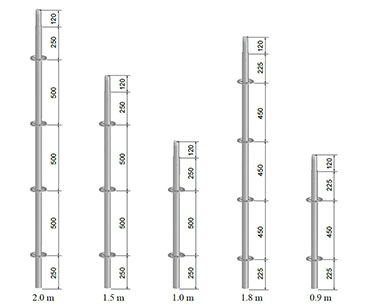

    Vertical

    The core vertical support of the Ring Lock System.  Verticals serve as the main load-bearing structure. Each unit connects via joint pins and is securely locked to horizontals and diagonals using wedge pins through the ring. This design ensures exceptional vertical load capacity and structural stability.

    • Material: High-strength STK500 steel
    • Finish: Hot-dip galvanized
    • Tube Dimensions: Φ48.6mm x t:2.5mm
    • Available Heights: 1.0 m, 1.5 m, 2.0 m, 3.0 m
    • Ring Spacing: 450mm / 500mm

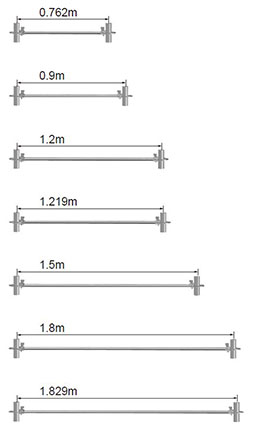

    Horizontal

    Distributes loads evenly and enhances lateral stability.
    Horizontals play a critical role in the Ring Lock System, providing crosswise bracing between verticals. They help distribute vertical loads and increase overall frame rigidity and safety.

    • Material: High-strength STK500 steel
    • Finish: Hot-dip galvanized
    • Available Lengths: 0.9m, 1.2m, 1.5m, 1.8m, 2.4m
    • Custom Sizes: Available upon request
    • Tube Dimensions: Φ42.7mm x t:2.3mm

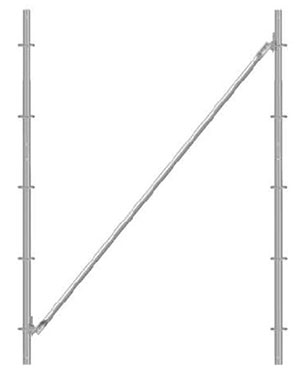

    Diagonal

    Enhances frame stiffness and prevents deformation under load.  Diagonals provide angular support in the Ring Lock System, reinforcing the frame structure and minimizing distortion under heavy or eccentric loading conditions.

    • Material: High-strength STK500 steel
    • Finish: Hot-dip galvanized
    • Standard Sizes:
         1.2m × 2.0m, 1.5m × 2.0m, 1.8m × 2.0m
    • Custom Sizes: Available upon request
    • Tube Dimensions: Φ42.7mm x t:2.3mm

    This British Standard is the official English language version of EN 12810-1:2003. It supersedes BS 1139-5:1990 which is withdrawn. Therefore, EN 12810-1: 2003 has replaced the BS 1139-5. If you are still looking for BS certified products, our EN certificate also meets your requirement.

    Certificate
    		 Certified to Perform — Globally Recognized Standards

    At Sucoot, safety and quality aren’t just claims — they’re verified by the world’s most trusted certifications:

    • ISO 9001
      Our quality management system is certified to ISO 9001 standards, ensuring consistent production, traceability, and reliability at every step.
    • EN 12810-1
      Sucoot’s scaffolding systems meet the rigorous structural and safety requirements of Europe’s leading modular scaffolding standard — trusted across major infrastructure and high-rise projects.
    • ANSI/ASSE A10.8
      Compliant with U.S. jobsite safety codes, our systems are built to meet American standards for strength, stability, and fall protection during construction.
    Test Report

    Tested for Trust — Quality You Can Rely On
    At Sucoot, every product goes through rigorous testing to ensure long-term performance and site safety:

    • Material Certification confirms that all steel meets the required grade, strength, and composition standards.
    • Magnetic Particle Inspection certified by SGS, the global authority in testing, our magnetic particle inspection detects invisible micro-cracks at weld points — ensuring structural safety with trusted, non-destructive precision.
    • Loading and Tension Tests validate real-world load performance, confirming that each component meets or exceeds design expectations.

    Adapting to Diverse Work Environments

    Working platforms and access towers, a subset of light duty scaffold, are particularly well-suited for jobs that demand agility and adaptability. Let's take a closer look at the versatility of mobile tower scaffolds.

    1. Painting and Maintenance
    Mobile tower scaffolds are for light duty work is the go-to choice for painters and maintenance crews. Their ease of mobility allows workers to access various points of a building or structure with minimal hassle. This mobility not only saves time but also enhances safety by reducing the need for constant assembly and disassembly.

    2. Electrical and Plumbing Work
    For electricians and plumbers, facade scaffolding system provides the perfect platform for working at heights. These scaffolds offer stability and security, ensuring that professionals can carry out their tasks efficiently without compromising safety.

    3. Light Construction Projects
    In light construction projects, where the emphasis is on speed and efficiency, access platforms/towers shine. Their lightweight design and quick setup make them an invaluable asset, enabling workers to complete projects on schedule.

    Why Choose SUCOOT® Light Duty Scaffolding?

    Now that we've explored the versatility of working platform/access tower, let's highlight the advantages of opting for light-duty scaffolding in your projects.

    1. Cost-Effective Solution
    With the features of easy assembly/disassembly, safety and stability, it can save time and costs at work. Light duty scaffold is a cost-effective alternative to its heavier counterparts. Its affordability makes it an attractive choice for small to medium-sized projects where budget constraints are a consideration.

    2. Easy Maneuverability
    The mobility of r mobile tower scaffolds simplifies the process of accessing different areas of a worksite. This feature not only saves time but also reduces the physical strain on workers.

    3. Quick Setup and Dismantling
    Time is of the essence in the construction industry, and  mobile tower scaffolding delivers in this regard. These scaffolds can be assembled and disassembled quickly, ensuring that work can commence promptly.

    4. Safety First
    Safety should always be a top priority on construction sites.  Light facade scaffold is designed with safety in mind, providing stability and support for workers operating at heights.
