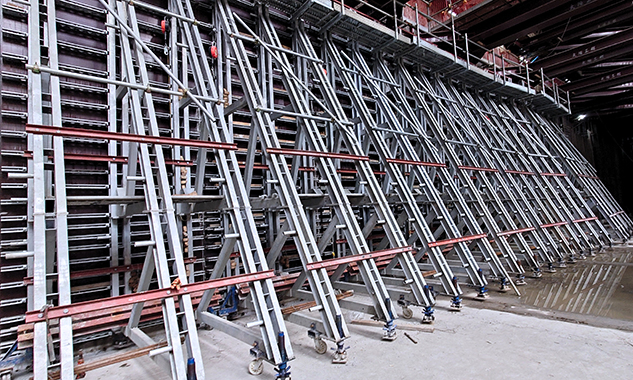

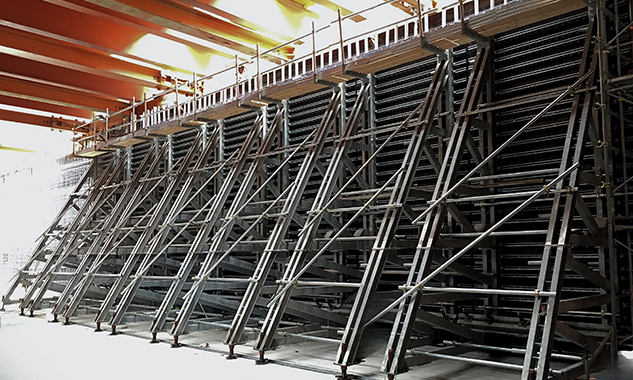

Triangle Strut Frame — Designed for Single-Sided Wall Formwork

When single-sided walls rise above 4m and through-wall tie rods cannot be used, the fresh-concrete pressure places far greater demands on formwork strength.Simply adding more bearers and diagonal braces can drive up costs, slow down installation, and still risk walls going out of alignment.

Sucoot’s Triangle Strut Frame is purpose-built for single-sided wall formwork. With no need for through-wall tie rods, the system leaves a smooth wall surface with no tie holes, while still providing the strength to withstand heavy lateral concrete pressure. This ensures precise wall alignment, a clean finish, and a more economical construction process.

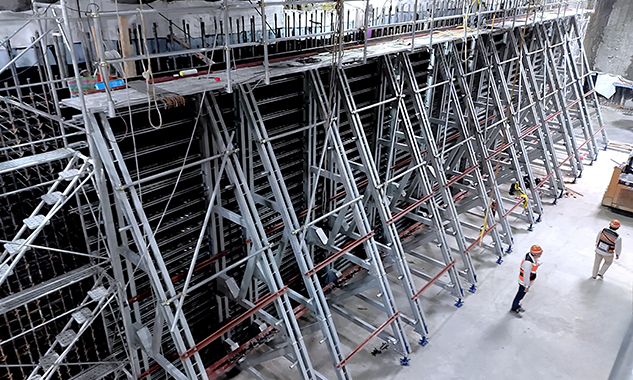

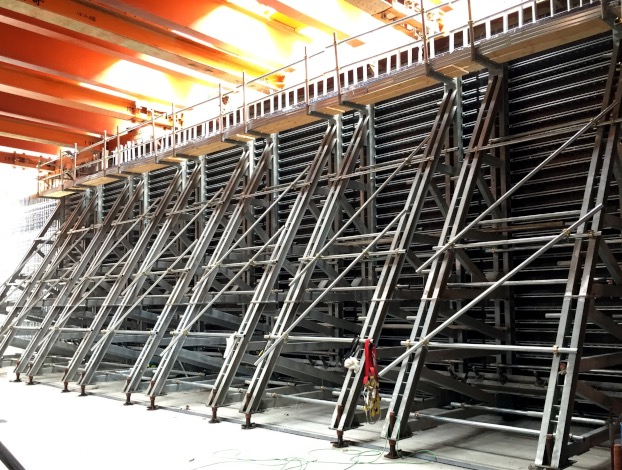

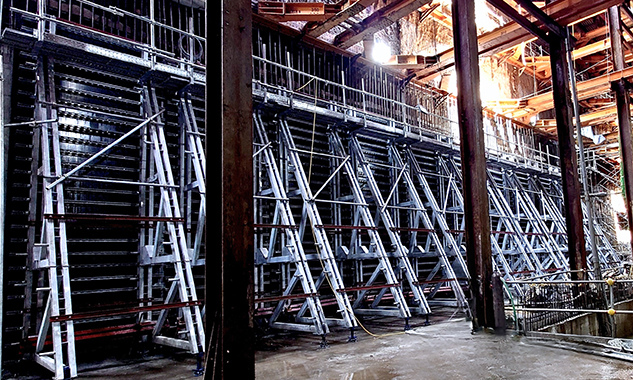

Triangle Strut Frame has been successfully used in major civil projects such as railway undergrounding, metro and light rail works, making it a trusted choice for demanding single-sided wall applications.

Catalog

Contact us

    This combination does not exist.


    1. Strong Double C-Channel Frame
      Built with double C-channels for excellent bending resistance and load capacity, ensuring walls stay plumb and stable during casting.

    2. Anchored for Reliable Support
      Cone-L and J-Bolts are pre-embedded in the foundation, then connected with high-tensile tie rods through the pressing beam, making the Triangle Strut Frame the main load-bearing support.

    3. Flexible Adjustment for Slopes and Minor Ground Variations
      Equipped with Universal Horn Jack Bases and Junction Plates of Jack Base, the system can be fine-tuned to handle site slopes and minor ground level differences, keeping the wall formwork perfectly vertical.

    4. Easy to Shift and Reuse as a Whole Unit

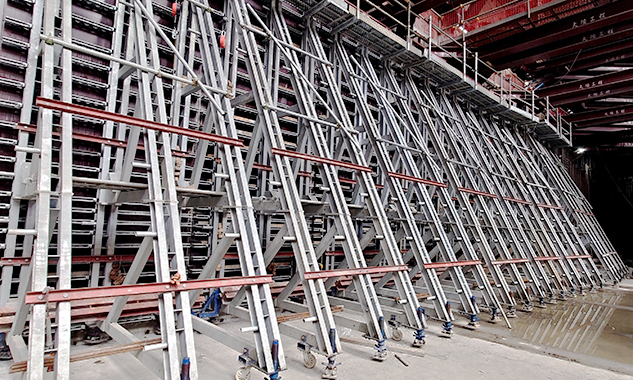

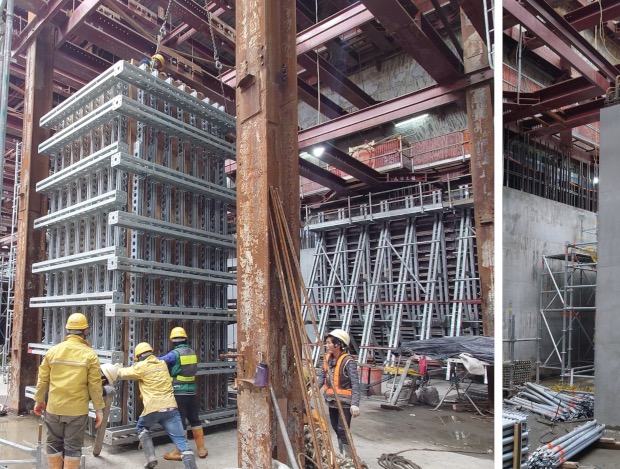

      Entire wall formwork units can be shifted without dismantling. With Triangle Type Frame Moving Castors at the front and U-Type Frame Moving Castors at the back, units can be pushed manually or moved quickly with a forklift or small crane to the next pour location.

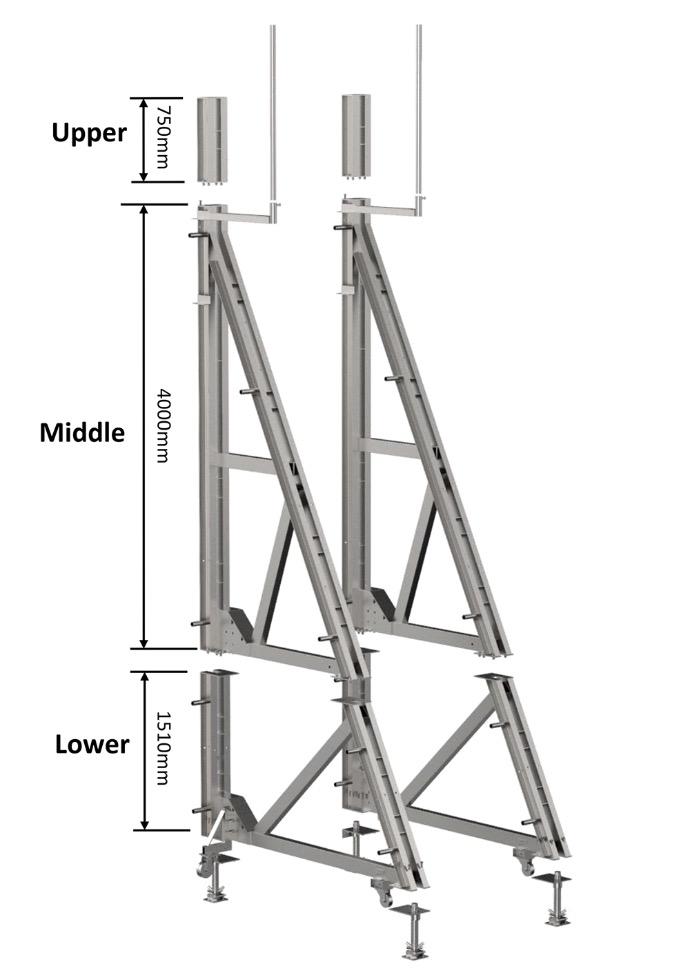

    The Triangle Strut Frame consists of three modular parts — Upper (0.75m), Middle (4.0m), and Lower (1.5m). These can be combined flexibly according to wall height requirements.

    Wall Height
    		Component Combination
    Up to 4.0m
    		 Middle
    4.0m – 4.75m
    		Middle + Upper
    4.75m – 5.5m
    		Lower + Middle
    5.5m – 6.25m
    		Lower + Middle + Upper
    Above 6.25m
    		Layer-by-layer relocation is recommended
    1. Powerful Support for Lateral Concrete Pressure

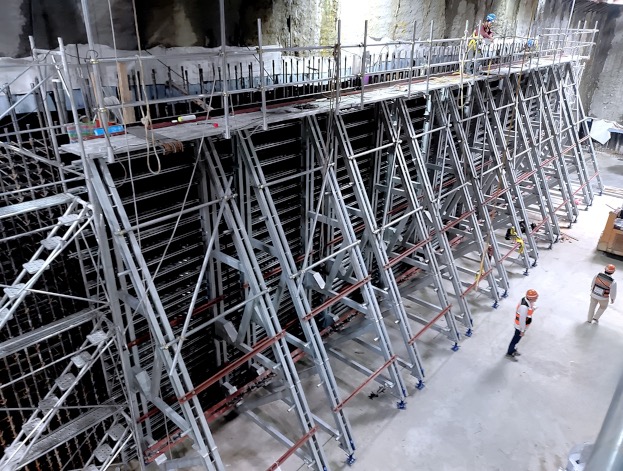

      • The Triangle Strut Frame provides reliable support for single-sided wall pours from 4m to 6m in height.
      • For walls taller than 6m, layer-by-layer construction is recommended.
      During the first layer, Cone-L and J-bolts are pre-embedded in the foundation.

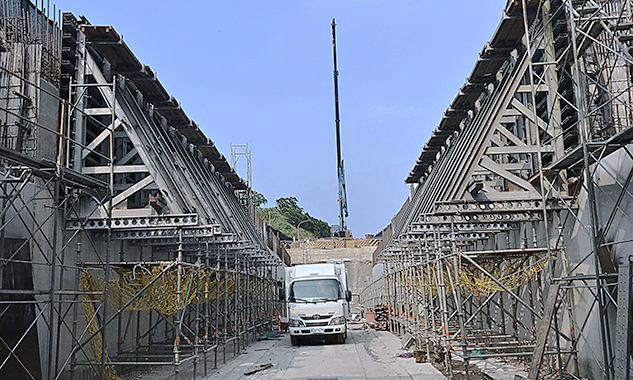

      Once the first layer finishes casting, Sucoot Ring Lock Scaffolding System could be erected beneath Triangle Strut Frame to create a stable supporting platform for the casting of the second layer.
      The wall formwork is then placed onto the platform and firmly fixed with high-tensile rods, enabling safe and precise casting of the upper layer.


    2. Formwork System Relocation without Dismantling
      • With Formwork Moving Castors or a forklift, each formwork unit can be relocated as a whole to the next pour location.
      This eliminates repeated assembly and dismantling, reduces manpower demand, and speeds up the construction schedule — ensuring projects are delivered on time.


    3. Adjustable Base for Slopes and Height Variations
      • The Universal Horn Jack Base allows fine adjustment of base plate angle and height, adapting easily to site slopes and ground differences. This ensures each formwork unit stays perfectly vertical, keeping the entire wall precise and aligned.





    The SUCOOT Base Beam/Soldier Beam is suitable for various applications, such as:
    1. Bridge Viaduct:
      Designed as primary bearer or second bearer for inner/outer formwork and support for wing form.

    2. Slab, Beam, and Wall Formwork:
      Suitable for use in slab, beam, and wall formwork as main bearer or second bearer.

    3. Large-Span Structures:
      The design of the Base Beam/Soldier Beam accommodates large-span structures, offering significant cost savings in formwork support and concrete pouring.

    4. Lateral Support:
      The Base Beam/Soldier Beam provides stable lateral support at any height, ensuring structural stability.
    The SUCOOT Base Beam/Soldier Beam is ideal for various construction applications, such as:
    1. Infrastructure Projects:
      Suitable for bridges, viaducts, culverts, tunnels, and other large-scale infrastructure developments.

    2. Industrial Facilities:
      Adaptable for use in high-tech factories, steel mill and power plants.

    3. Commercial and Residential Building Construction:
      Perfect for forming robust structures like columns, walls, and slabs.
