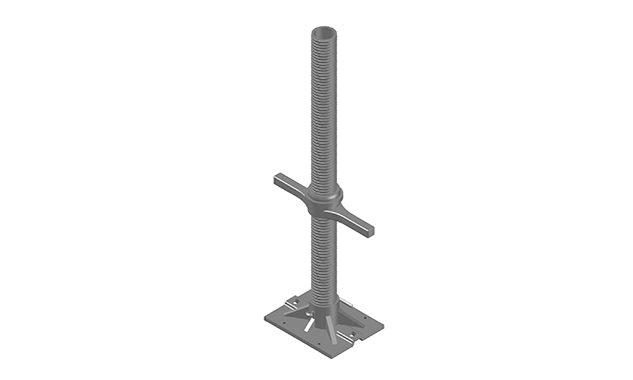

Customized Components for Jack Base

https://www.sucoot.com/web/image/product.template/89/image_1920?unique=b752614

We design and manufacture special-spec jacks to fit your system and methods—Jack Base, U-Head Jack Base, and handle nuts can all be customized.

    This combination does not exist.



    Sucoot applies professional engineering design and data-driven analysis to size each product correctly—so you get components you can use with confidence.
    Screw Jack
    Ø48mm T:5.0mm ACME4TPI

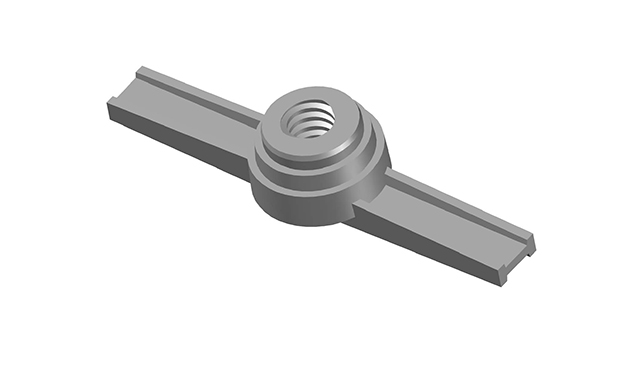

    		HN-15D Handle Nut

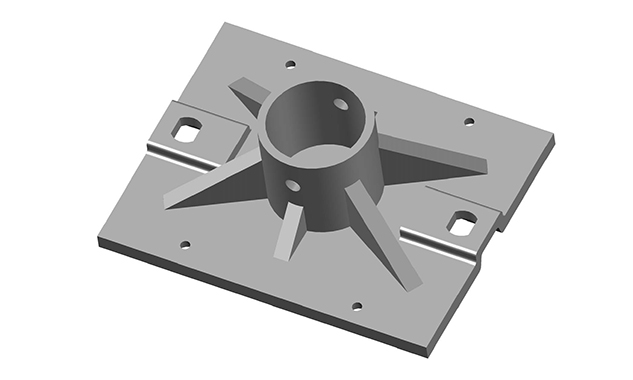

    		Socket Plate

    #10 Dywidag Thread

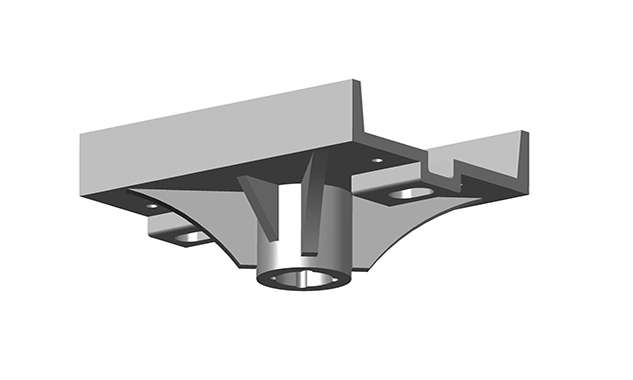

    U-Head Plate

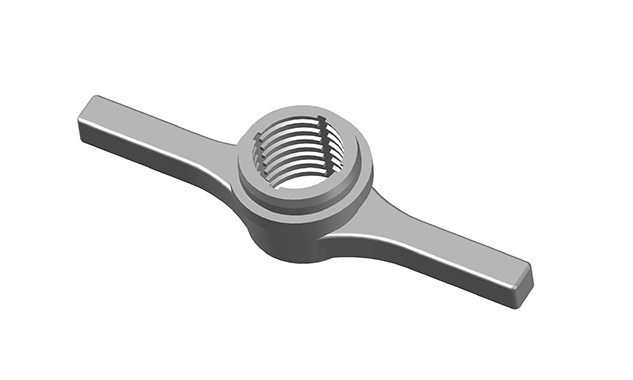

    		WN-97 Screw Jack Handle

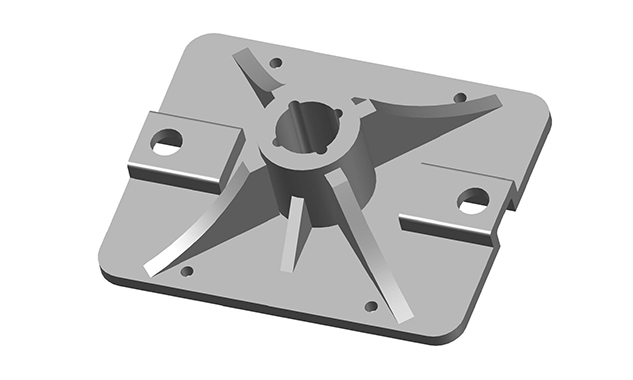

    		Base Plate

    Scaffolding towers, stage towers, and shoring scaffolding.

    Specification
    		Base Φ (mm)
    		Max.Load (kgs)
    		Safety Load (kgs)
    WN-95 Φ10mm Ball Screw 6 TPI
    		--4,500
    		2,200
    WN-95 Φ12mm Ball Screw 6 TPI
    		-6,000
    		 3,000
    WN-95B Φ12mm Ball Screw 6 TPI
    		1006,450
    		 3,225
    WN-95G Φ10mm Ball Screw 6 TPI
    		804,400
    		2,200
    WN-95G Φ12mm Ball Screw 6 TPI
    		804,400
    		3,100

    尺寸可依據客戶需求客製
    BaseØ < 100mm: girder spacing no more than 35mm
