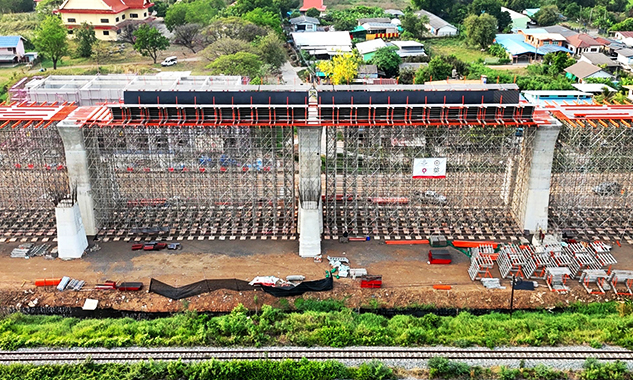

橋梁上構模板

https://www.sucoot.com/web/image/product.template/16/image_1920?unique=7d63353

什麼是橋梁上構模板？

橋梁上構模板，簡單來說，就是用來澆築橋墩以上結構的「臨時支撐與成形系統」。
像帽樑、柱頭板、邊跨、箱型梁這些大跨距、高載重的核心部位，都必須依靠它來成形。

因為這些構件關係到整座橋的穩定，所使用的模板系統一定要穩固可靠、能重複利用，還要精準到位，才能確保澆築時安全無虞，混凝土也能一次成型。

型錄

聯絡我們

    此組合不存在。


    • 兩種主要支撐方式
      依據橋梁上構的高度與結構需求，模板系統可採以下支撐配置：
      • 可調式斜撐
      適用於深度約 2.5～3.5 公尺的箱型梁結構，提供穩定支撐並便於現場調整。
      • 蜂巢鋼
      建議用於帽樑或深度達 5～7 公尺的梁段，蜂巢鋼支撐力強、適用於大體量混凝土澆築作業。

    • 關鍵連接構件
      • 斜撐與墊條之間的連接件：確保在澆築過程中整體結構的穩固性。
      • 墊條彼此的連接件：將交錯排佈的墊條連為一個整體，分散載重、維持結構穩定。

    1. 依深度與載重要求，精準設計支撐方案
      從淺層箱型梁到深層帽樑，實固皆能提供依工程尺寸和荷重計算進行設計的支撐方案，靈活搭配模板支撐系統，確保澆築安全和工程效率。

    2. 穩定支撐大體量澆築工程
      模板系統中的墊條與連接構件可有效承受大量混凝土澆置時產生的側向與垂直壓力，
      防止模板變形或倒塌，保障結構整體成形品質。

    3. 模組化搭設、重複使用效益高
      實固模板系統具備模組化設計與高耐用性，可於多段橋梁上構中重複使用，更可以通過吊車將支撐架和模板系統整組搬動，移動至下一個工作區域，不用再拆除、組裝，大大減少人力成本。
      實固橋梁上構模板，不僅可加速工地施工效率，更可有效降低長期成本，兼具實用性和經濟效益。


    The SUCOOT Base Beam/Soldier Beam is suitable for various applications, such as:
    1. Bridge Viaduct:
      Designed as primary bearer or second bearer for inner/outer formwork and support for wing form.

    2. Slab, Beam, and Wall Formwork:
      Suitable for use in slab, beam, and wall formwork as main bearer or second bearer.

    3. Large-Span Structures:
      The design of the Base Beam/Soldier Beam accommodates large-span structures, offering significant cost savings in formwork support and concrete pouring.

    4. Lateral Support:
      The Base Beam/Soldier Beam provides stable lateral support at any height, ensuring structural stability.
    The SUCOOT Base Beam/Soldier Beam is ideal for various construction applications, such as:
    1. Infrastructure Projects:
      Suitable for bridges, viaducts, culverts, tunnels, and other large-scale infrastructure developments.

    2. Industrial Facilities:
      Adaptable for use in high-tech factories, steel mill and power plants.

    3. Commercial and Residential Building Construction:
      Perfect for forming robust structures like columns, walls, and slabs.

    Why Choose SUCOOT® Light Duty Scaffolding?

    Now that we've explored the versatility of working platform/access tower, let's highlight the advantages of opting for light-duty scaffolding in your projects.

    1. Cost-Effective Solution
    With the features of easy assembly/disassembly, safety and stability, it can save time and costs at work. Light duty scaffold is a cost-effective alternative to its heavier counterparts. Its affordability makes it an attractive choice for small to medium-sized projects where budget constraints are a consideration.

    2. Easy Maneuverability
    The mobility of r mobile tower scaffolds simplifies the process of accessing different areas of a worksite. This feature not only saves time but also reduces the physical strain on workers.

    3. Quick Setup and Dismantling
    Time is of the essence in the construction industry, and  mobile tower scaffolding delivers in this regard. These scaffolds can be assembled and disassembled quickly, ensuring that work can commence promptly.

    4. Safety First
    Safety should always be a top priority on construction sites.  Light facade scaffold is designed with safety in mind, providing stability and support for workers operating at heights.
